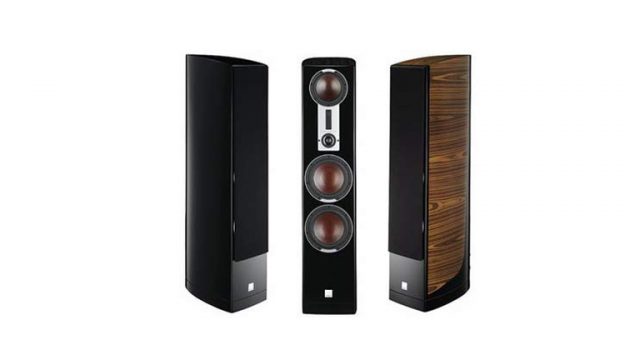

Dali Epicon 8

Quick Jump

Brand, Model and Release Date

Information about the brand, model release date.

Manufacturer Dali Speakers
Model Epicon 8
Release Date 2013
HifiSpecs Rating -
Amazon Rating -
Price

Technical Specs

Technical characteristics of the speakers.

Amplification Type Passive
Crossover Type 3+½-Way
Enclosure type Bass Reflex
Frequency Range (+/-3 dB)[Hz] 35 - 30000
Frequency Range (-6dB)[Hz] -
Maximum SPL [dB] 112
Sensitivity (2,83 V/1 m)[dB] 89
Nominal Impedance (Ohms) 5
THD (Total Harmonic Distortion) -
Recommended Amplifier Power [W] 50-500
Crossover Frequency [Hz] 550/3.100/15.000
Bass Reflex Tuning Frequency [Hz] 28
Driver Units

Tweeter: 1 x 29 mm soft dome 1 x 10 x 55 mm ribbon
Mid/Bass Drivers: 2 x 8” / 1 x 6½”

Connectivity Wired
Inputs Bi-wire / Bi-Amp
Outputs -
Magnetic Shielding No

Placements and Distances

Where and how to put them.

Form Factor Floor
Distance from Wall [cm] >35

Dimensions and Weight

Speaker dimensions and weight without stands.

Length ~10.39 in
~263.91 mm
~26.39 cm
Width ~19.09 in
~484.89 mm
~48.49 cm
Height ~48,23 in
~1219.2 mm
~121.92 cm
Weight ~104.7 lb
~47491.12 g
~47.49 kg
Shipping Weight ~ lb
~
