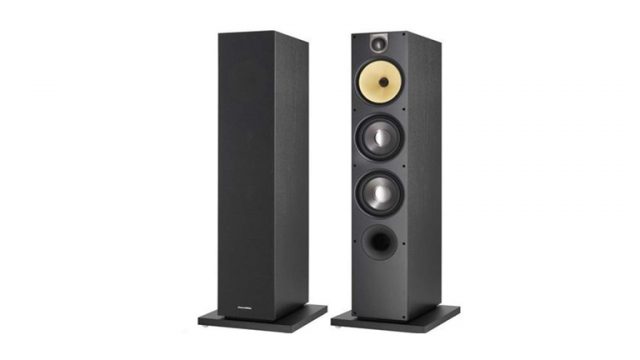

B&W 683 S2

Quick Jump

Brand, Model and Release Date

Information about the brand, model release date.

Manufacturer Bowers & Wilkins
Model 683 S2
Release Date 2017
HifiSpecs Rating -
Amazon Rating -

Technical Specs

Technical characteristics of the speakers.

Amplification Type Passive
Crossover Type 3-Way
Enclosure type Bass Reflex
Frequency Range (+/-3 dB)[Hz] 52 - 22000
Frequency Range (-6dB)[Hz] -
Maximum SPL [dB] -
Sensitivity (2,83 V/1 m)[dB] 89
Nominal Impedance (Ohms) 8
THD (Total Harmonic Distortion) -
Recommended Amplifier Power [W] 25
Crossover Frequency [Hz] 4000
Bass Reflex Tuning Frequency [Hz] -
Driver Units

Tweeter: 1 x 28mm AE custom fabric dome
Mid/Bass Drivers: 6″ (150mm) woven-Kevlar-cone FST midrange

Connectivity Wired
Inputs Single Wire
Outputs -
Magnetic Shielding No

Placements and Distances

Where and how to put them.

Form Factor Floor
Distance from Wall [cm] 15

Dimensions and Weight

Speaker dimensions and weight without stands.

Length ~7.5 in
~190.5 mm
~19.05 cm
Width ~14.3 in
~363.22 mm
~36.32 cm
Height ~38.8 in
~985.52 mm
~98.55 cm
Weight ~34.4 lb
~15603.58 g
~15.6 kg
Shipping Weight ~59.97 lb
~27201.93 g
~27.2 kg

Colors and Accessories

List of available colors and optional accessories.

  • Black
  • White

Detachable Grilles No

Price and Warranty

Satisfaction is (not) guaranteed.

Warranty 3 Years
Manufacturer URL
