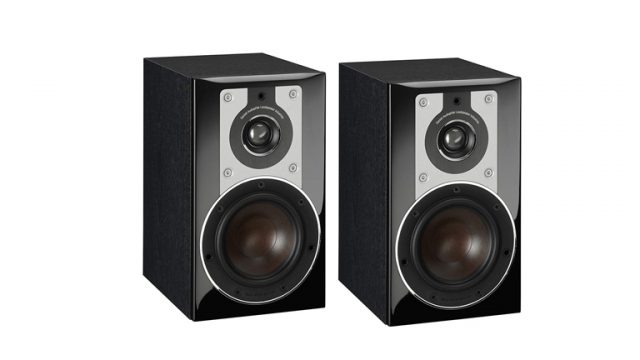

Dali Opticon 1

Quick Jump

Brand, Model and Release Date

Information about the brand, model release date.

Manufacturer Dali Speakers
Model Opticon 1
Release Date 2016
HifiSpecs Rating -
Amazon Rating -
Price

Technical Specs

Technical characteristics of the speakers.

Amplification Type Passive
Crossover Type 2-Way
Enclosure type Bass Reflex
Frequency Range (+/-3 dB)[Hz] 62 - 26000
Frequency Range (-6dB)[Hz] -
Maximum SPL [dB] 105
Sensitivity (2,83 V/1 m)[dB] 86
Nominal Impedance (Ohms) 4
THD (Total Harmonic Distortion) -
Recommended Amplifier Power [W] 25-100
Crossover Frequency [Hz] 2000
Bass Reflex Tuning Frequency [Hz] 61.5
Driver Units

Tweeter: 1 x 26 mm soft dome
Mid/Bass Drivers: 1 x 4¾”

Connectivity Wired
Inputs Single Wire
Outputs -
Magnetic Shielding No

Placements and Distances

Where and how to put them.

Form Factor Shelf, Stand
Distance from Wall [cm] 2 - 80

Dimensions and Weight

Speaker dimensions and weight without stands.

Length ~6.1 in
~154.94 mm
~15.49 cm
Width ~9.2 in
~233.68 mm
~23.37 cm
Height ~10.4 in
~264.16 mm
~26.42 cm
Weight ~9.9 lb
~4490.56 g
~4.49 kg
Shipping Weight ~ lb
~0 g
~0 kg

Colors and Accessories

List of available colors and optional accessories.

Colors
  • Black Ash
  • Light Walnut
  • White – Matt Satin
Accessories

Rubber feet,
manual

Detachable Grilles No

Price and Warranty

Satisfaction is (not) guaranteed.

Warranty 3 Years
Manufacturer URL https://www.dali-speakers.com
Amazon
