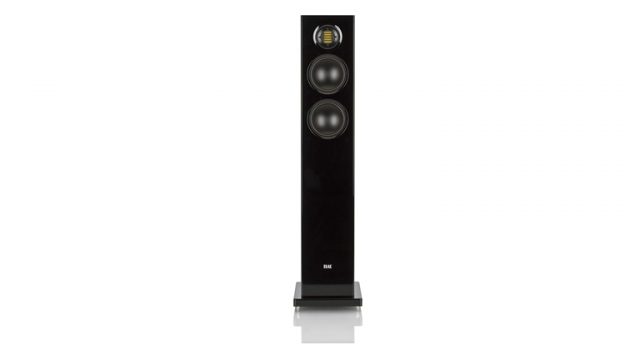

Elac FS 147

Quick Jump

Brand, Model and Release Date

Information about the brand, model release date.

Manufacturer Elac
Model FS 147
Release Date 2014
HifiSpecs Rating -
Amazon Rating -
Price

Technical Specs

Technical characteristics of the speakers.

Amplification Type Passive
Crossover Type 2½-way
Enclosure type Bass Reflex
Frequency Range (+/-3 dB)[Hz] 38 - 50000
Frequency Range (-6dB)[Hz] -
Maximum SPL [dB] -
Sensitivity (2,83 V/1 m)[dB] 89
Nominal Impedance (Ohms) 4
THD (Total Harmonic Distortion) -
Recommended Amplifier Power [W] 20-180
Crossover Frequency [Hz] 2700
Bass Reflex Tuning Frequency [Hz] -
Driver Units

Tweeter: 1 × JET III
Mid/Bass Drivers: 2 × 140 mm AS cone

Connectivity Wired
Inputs Single Wire
Outputs -
Magnetic Shielding No

Placements and Distances

Where and how to put them.

Form Factor Floor
Distance from Wall [cm] 15

Dimensions and Weight

Speaker dimensions and weight without stands.

Length ~8.66 in
~219.96 mm
~22 cm
Width ~11.8 in
~299.72 mm
~29.97 cm
Height ~37.4 in
~949.96 mm
~95 cm
Weight ~33.06 lb
~14995.76 g
~15 kg
Shipping Weight ~33.06 lb
~14995.76 g
~15 kg

Colors and Accessories

List of available colors and optional accessories.

Colors
  • Black Ash
Accessories
  • M6 Spike
Detachable Grilles No

Price and Warranty

Satisfaction is (not) guaranteed.

Warranty 3 Years
Manufacturer URL https://www.elac.com
