Brand, Model and Release Date
Information about the brand, model release date.
| Manufacturer | Elac |

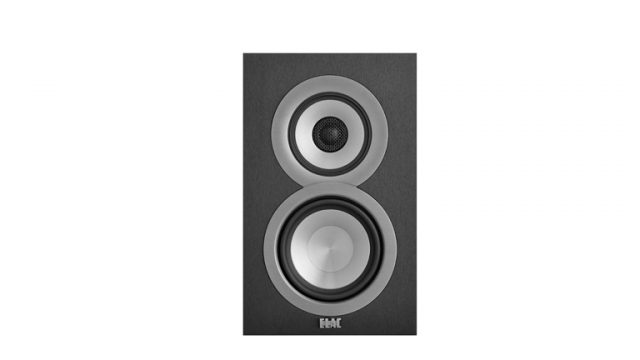

| Model | Uni-Fi UB5 |
| Release Date | 2016 |
| WHAT HIFI Rating | - |
| Amazon Rating | |
| Price |
Technical Specs
Technical characteristics of the speakers.
| Amplification Type | Passive |
| Crossover Type | 3-Way |
| Enclosure type | Bass Reflex |
| Frequency Range (+/-3 dB)[Hz] | 46 - 25000 |
| Frequency Range (-6dB)[Hz] | - |
| Maximum SPL [dB] | - |
| Sensitivity (2,83 V/1 m)[dB] | 85 |
| Nominal Impedance (Ohms) | 4 |
| THD (Total Harmonic Distortion) | - |
| Recommended Amplifier Power [W] | 40-140 |
| Crossover Frequency [Hz] | 2700 |
| Bass Reflex Tuning Frequency [Hz] | - |
| Driver Units | Tweeter: 1 x 1-inch soft dome, concentrically mounted |
| Connectivity | Wired |
| Inputs | Single Wire |
| Outputs | - |
| Magnetic Shielding | No |
Placements and Distances
Where and how to put them.
| Form Factor | Shelf, Stand |
| Distance from Wall [cm] | 15 |
Dimensions and Weight
Speaker dimensions and weight without stands.
| Length | ~7.87 in ~199.9 mm ~19.99 cm |
| Width | ~10.75 in ~273.05 mm ~27.31 cm |
| Height | ~12.75 in ~323.85 mm ~32.39 cm |
| Weight | ~16.5 lb ~7484.27 g ~7.48 kg |
| Shipping Weight | ~38.1 lb ~17281.87 g ~17.28 kg |
Colors and Accessories
List of available colors and optional accessories.
| Colors |
|
| Accessories |
|
| Detachable Grilles | Yes |
Price and Warranty
Satisfaction is (not) guaranteed.
| Warranty | 3 Years |
| Manufacturer URL | https://www.elac.com |
| Amazon |
