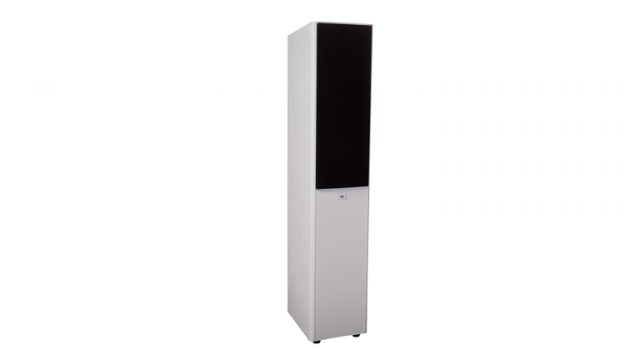

JBL Arena 180

Quick Jump

Brand, Model and Release Date

Information about the brand, model release date.

Manufacturer JBL
Model Arena 180
Release Date 2015
HifiSpecs Rating
Amazon Rating
Price

Technical Specs

Technical characteristics of the speakers.

Amplification Type Passive
Crossover Type 2-Way
Enclosure type Bass Reflex
Frequency Range (+/-3 dB)[Hz] 39 - 40000
Frequency Range (-6dB)[Hz] -
Maximum SPL [dB] -
Sensitivity (2,83 V/1 m)[dB] 88
Nominal Impedance (Ohms) 8
THD (Total Harmonic Distortion) -
Recommended Amplifier Power [W] 20-225
Crossover Frequency [Hz] 2100
Bass Reflex Tuning Frequency [Hz] -
Driver Units

Tweeter: 1-inch (25mm) soft dome tweeter
Mid/Bass Drivers: 2x 7-inch (178mm) high-output polycellulose woofers

Connectivity Wired
Inputs Single Wire
Outputs -
Magnetic Shielding No

Placements and Distances

Where and how to put them.

Form Factor Floor
Distance from Wall [cm] 15

Dimensions and Weight

Speaker dimensions and weight without stands.

Length ~8.54 in
~216.92 mm
~21.69 cm
Width ~12.36 in
~313.94 mm
~31.39 cm
Height ~42.75 in
~1085.85 mm
~108.59 cm
Weight ~33.6 lb
~15240.7 g
~15.24 kg
Shipping Weight ~42 lb
~19050.88 g
~19.05 kg

Colors and Accessories

List of available colors and optional accessories.

Colors
  • Black
  • White
Accessories
  • 1 x JBL Arena 180
  • 1 x Owner’s Manual
  • 4 x Carpet Spikes
Detachable Grilles No

Price and Warranty

Satisfaction is (not) guaranteed.

Warranty 1 Year
Manufacturer URL https://www.jbl.com
