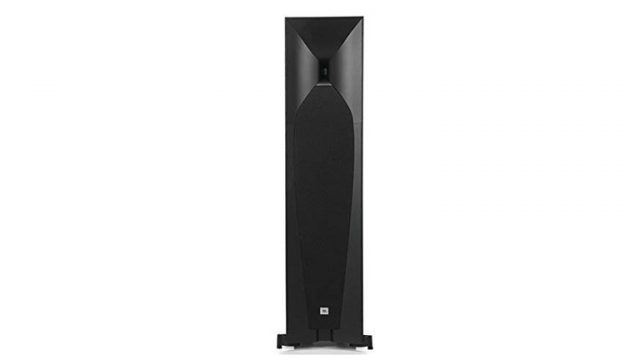

JBL Studio 580

Quick Jump

Brand, Model and Release Date

Information about the brand, model release date.

ModelStudio 580
Release Date2011
Amazon Rating

Technical Specs

Technical characteristics of the speakers.

Amplification TypePassive
Crossover Type2-Way
Enclosure typeBass Reflex
Frequency Range (+/-3 dB)[Hz]-
Frequency Range (-6dB)[Hz]40 - 40000
Maximum SPL [dB]-
Sensitivity (2,83 V/1 m)[dB]90
Nominal Impedance (Ohms)6
THD (Total Harmonic Distortion)-
Recommended Amplifier Power [W]200
Crossover Frequency [Hz]1500
Bass Reflex Tuning Frequency [Hz]-
Driver Units

Tweeter: 25mm (1″) compression driver with neodymium magnet and
one-piece Teonex® diaphragm on a glass-filled ABS
Mid/Bass Drivers: Two 165mm (6-1/2″) PolyPlas™ cones with SFG magnet structures,
cast frames and rubber surrounds, magnetically shielded

InputsSingle Wire
Magnetic ShieldingNo

Placements and Distances

Where and how to put them.

Form FactorFloor
Distance from Wall [cm]15

Dimensions and Weight

Speaker dimensions and weight without stands.

Length~8.84 in
~224.54 mm
~22.45 cm
Width~13.70 in
~347.98 mm
~34.8 cm
Height~42.08 in
~1068.83 mm
~106.88 cm
Weight~48.94 lb
~22198.81 g
~22.2 kg
Shipping Weight~53 lb
~24040.4 g
~24.04 kg

Colors and Accessories

List of available colors and optional accessories.

  • Black
  • Cherry
  • 1 Studio 580 floorstanding loudspeaker
  • 1 horn cover
  • 1 port tube insert
  • 4 metal spikes
  • Owner’s manual
Detachable GrillesNo

Price and Warranty

Satisfaction is (not) guaranteed.

Warranty5 Years
Manufacturer URL
