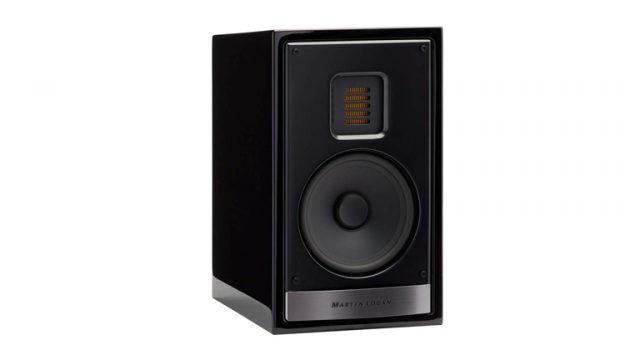

Martin Logan Motion 15i

Quick Jump

Brand, Model and Release Date

Information about the brand, model release date.

Manufacturer Martin Logan
Model Motion 15i
Release Date 2019
HifiSpecs Rating
Amazon Rating
Price

Technical Specs

Technical characteristics of the speakers.

Amplification Type Passive
Crossover Type 2-Way
Enclosure type Bass Reflex
Frequency Range (+/-3 dB)[Hz] 60 - 25000
Frequency Range (-6dB)[Hz] -
Maximum SPL [dB] -
Sensitivity (2,83 V/1 m)[dB] 92
Nominal Impedance (Ohms) 5
THD (Total Harmonic Distortion) -
Recommended Amplifier Power [W] 20-200
Crossover Frequency [Hz] 2700
Bass Reflex Tuning Frequency [Hz] -
Driver Units

Tweeter: 1″ × 1.4″ (2.6cm × 3.6cm) Folded Motion Transducer with 5.25″ × 1.75″ (13.3cm × 4.4cm) diaphragm
Mid/Bass Drivers: 5.25” (13.3cm) aluminum cone with cast basket.

Connectivity Wired
Inputs Single Wire
Outputs -
Magnetic Shielding No

Placements and Distances

Where and how to put them.

Form Factor Shelf, Stand
Distance from Wall [cm] 15

Dimensions and Weight

Speaker dimensions and weight without stands.

Length ~6.8 in
~172.72 mm
~17.27 cm
Width ~9.5 in
~241.3 mm
~24.13 cm
Height ~11.4 in
~289.56 mm
~28.96 cm
Weight ~12 lb
~5443.11 g
~5.44 kg
Shipping Weight ~13.85 lb
~6282.25 g
~6.28 kg

Colors and Accessories

List of available colors and optional accessories.

Colors
  • Gloss black
  • Matte white
  • Red walnut
Accessories

Detachable Grilles No

Price and Warranty

Satisfaction is (not) guaranteed.

Warranty 5 Years
Manufacturer URL https://www.martinlogan.com
