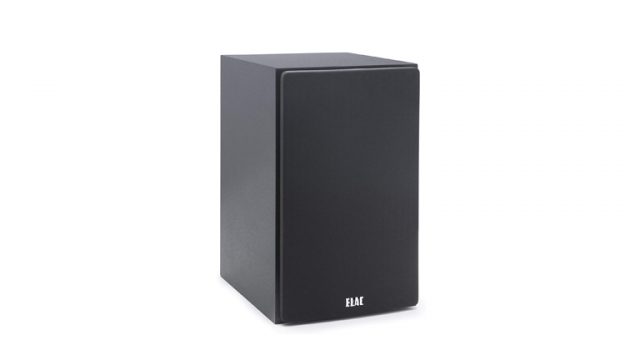

Elac Debut B5

Quick Jump

Brand, Model and Release Date

Information about the brand, model release date.

Manufacturer Elac
Model Debut B5
Release Date 2015
HifiSpecs Rating
Amazon Rating
Price

Technical Specs

Technical characteristics of the speakers.

Amplification Type Passive
Crossover Type 2-Way
Enclosure type Bass Reflex
Frequency Range (+/-3 dB)[Hz] 46 - 20000
Frequency Range (-6dB)[Hz] -
Maximum SPL [dB] -
Sensitivity (2,83 V/1 m)[dB] 85
Nominal Impedance (Ohms) 6
THD (Total Harmonic Distortion) -
Recommended Amplifier Power [W] 30-120
Crossover Frequency [Hz] 3000
Bass Reflex Tuning Frequency [Hz] -
Driver Units

Tweeter: 1 x 1-inch cloth dome
Mid/Bass Drivers:  1 x 5.25-inch woven aramid-fiber cone

Connectivity Wired
Inputs Single Wire
Outputs -
Magnetic Shielding No

Placements and Distances

Where and how to put them.

Form Factor Shelf, Stand
Distance from Wall [cm] 15

Dimensions and Weight

Speaker dimensions and weight without stands.

Length ~7.9 in
~200.66 mm
~20.07 cm
Width ~8.7 in
~220.98 mm
~22.1 cm
Height ~12.8 in
~325.12 mm
~32.51 cm
Weight ~11.5 lb
~5216.31 g
~5.22 kg
Shipping Weight ~28 lb
~12700.59 g
~12.7 kg

Colors and Accessories

List of available colors and optional accessories.

Colors
  • Black brushed vinyl
Accessories
  • Removable fabric grille
Detachable Grilles Yes

Price and Warranty

Satisfaction is (not) guaranteed.

Warranty 3 Years
Manufacturer URL https://www.elac.com
Amazon

Related Comparisons

Differences between Elac Debut B5 and other speakers
