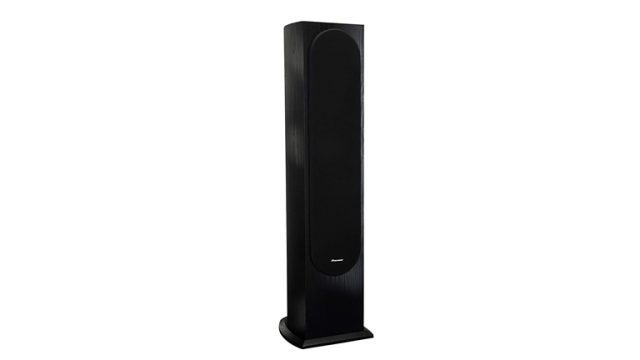

Pioneer SP-FS52

Quick Jump

Brand, Model and Release Date

Information about the brand, model release date.

Manufacturer Pioneer
Model SP-FS52
Release Date 2012
HifiSpecs Rating
Amazon Rating

Technical Specs

Technical characteristics of the speakers.

Amplification Type Passive
Crossover Type 3-Way
Enclosure type Bass Reflex
Frequency Range (+/-3 dB)[Hz] 40 - 20000
Frequency Range (-6dB)[Hz] -
Maximum SPL [dB] -
Sensitivity (2,83 V/1 m)[dB] 87
Nominal Impedance (Ohms) 6
THD (Total Harmonic Distortion) -
Recommended Amplifier Power [W] -
Crossover Frequency [Hz] 3000
Bass Reflex Tuning Frequency [Hz] -
Driver Units

Tweeter:  25mm Soft-dome Tweeter
Mid/Bass Drivers: 2 x 130mm Cone Woofer

Connectivity Wired
Inputs Single Wire
Outputs -
Magnetic Shielding No

Placements and Distances

Where and how to put them.

Form Factor Floor
Distance from Wall [cm] 15

Dimensions and Weight

Speaker dimensions and weight without stands.

Length ~8.26 in
~209.8 mm
~20.98 cm
Width ~10.23 in
~259.84 mm
~25.98 cm
Height ~35.03 in
~889.76 mm
~88.98 cm
Weight ~24.47 lb
~11099.41 g
~11.1 kg
Shipping Weight ~28.2 lb
~12791.3 g
~12.79 kg

Colors and Accessories

List of available colors and optional accessories.

  • Black

Detachable Grilles No

Price and Warranty

Satisfaction is (not) guaranteed.

Warranty 3 Years
